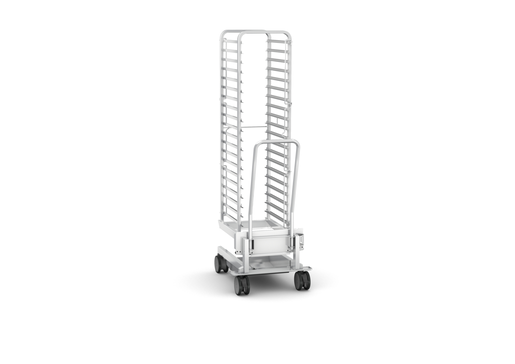

Rational Plate Trolley model 20-1/1 - 16 shelves: Plate trolley for holding GN accessories. For quick and convenient loading and unloading of cooking systems.
Intended Use
This product is intended exclusively for professional use, for example in restaurant kitchens and in professional and industrial kitchens in hospitals, schools or butcher shops. Any use other than the intended use is considered non-compliant. RATIONAL AG assumes no responsibility for consequences resulting from improper use.
Features
16 shaped runners with 80 mm runner spacing
Container fastening by locking mechanism
Containers can be loaded from both sides
Tilt protection when extracting containers by means of U-shaped runners
4 tandem casters (2 of which have brakes)
Removable drip tray. Drainage via the drain
Removable handle
Capacity
1/1 GN Roasting plate and 16 x
bakery
1/1 GN Grid 16 x
1/1 GN 20 mm deep 16 x
1/1 GN 40 mm deep 16 x
1/1 GN 65 mm deep 16 x
1/1 GN 100 mm deep 8 x
H4-1/2 (up to 1,300 g) Chicken Superspike 12
H6-1/1 (up to 1,800 g) Chicken Superspike 6 x
H8-1/1 (up to 1,300 g) Chicken Superspike 6 x
H10-1/1 (up to 950 g) Chicken Superspike 6 x
Other compatible containers: 1/3 GN, 1/2 GN, 2/3 GN
Technical Specifications
Distance between the lowest shelf and the opening 118 mm
of the cooking chamber:
Distance between the highest shelf and the opening 131 mm
of the cooking chamber:
Shelf height quantity: 1.62 m
Max. load: 90 kg
Max. load per shelf: 15 kg
Weight: 33.2 kg
Code 60.21.288
Technical specifications
-
Weight: 33.2 kg
-
Length: 82.2 cm
-
Width: 56.6 cm
-
Height: 174.2 cm
