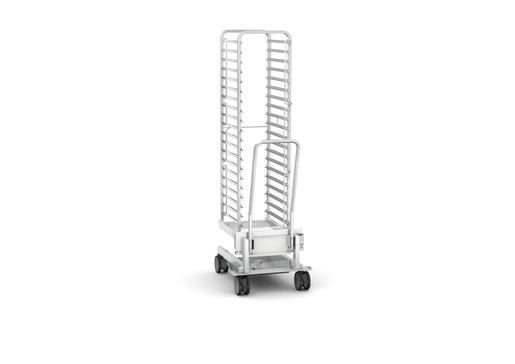

Rational Mobile oven rack, model 20-1/1 - 17 shelves: Mobile oven rack for holding GN accessories. For quick and convenient loading and unloading of cooking systems.
Intended Use
This product is intended exclusively for professional use, for example in restaurant kitchens and in professional and industrial kitchens in hospitals, schools or butcher shops. Any use other than the intended use is considered non-compliant. RATIONAL AG assumes no responsibility for consequences resulting from improper use.
Features
17 profiled rails with a rail spacing of 74 mm
Container fastening by means of locking
Containers can be loaded from both sides
Anti-tilt protection when pulling out containers by means of U-rails
4 tandem castors (2 of which with brakes)
Removable drip tray. Draining via the drain
Removable handle
Capacity
1/1 GN Roasting pan and 17 x
pastry
1/1 GN Grid 17 x
1/1 GN 20 mm deep 17 x
1/1 GN 40 mm deep 17 x
1/1 GN 65 mm deep 17 x
1/1 GN 100 mm deep 9 x
H4-1/2 (up to 1,300 g) Chicken Superspike 12 x
H6-1/1 (up to 1,800 g) Chicken Superspike 6 x
H8-1/1 (up to 1,300 g) Chicken Superspike 6 x
H10-1/1 (up to 950 g) Chicken Superspike 6 x
Other compatible containers: 1/3 GN, 1/2 GN, 2/3 GN
Technical Specifications
Distance between the lowest shelf and the oven opening: 118 mm
Distance between the highest shelf and the oven opening: 147 mm
Shelf height quantity: 1.60 m
Max. load: 90 kg
Max. load per shelf: 15 kg
Weight: 33.6 kg
Code 60.21.289
Technical specifications
-
Weight: 33.6 kg
-
Length: 82.2 cm
-
Width: 56.6 cm
-
Height: 174.2 cm
