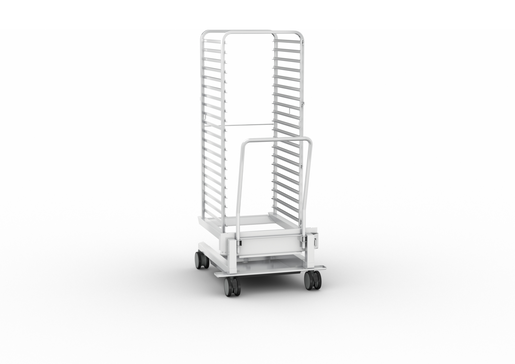

Rational Tray trolley model 20-2/1 - 17 shelves: Tray trolley for holding GN accessories. For quick and convenient loading and unloading of cooking systems.
Intended use
This product is intended exclusively for professional use, for example in restaurant kitchens and in professional and industrial kitchens in hospitals, schools, or butcher shops. Any use other than the intended use is considered non-compliant. RATIONAL AG assumes no responsibility for consequences resulting from improper use.
Features
17 shaped runners with 74 mm runner spacing
Container fastening by locking mechanism
Containers can be loaded from both sides
Anti-tilt protection when extracting containers via U-shaped runners
4 tandem wheels (2 of which have brakes)
Removable drip tray. Drainage via the outlet
Removable handle
Capacity
2/1 GN Roasting pan and 17 x
pastry
2/1 GN Grid 17 x
2/1 GN 20 mm deep 17 x
2/1 GN 40 mm deep 17 x
2/1 GN 65 mm deep 17 x
2/1 GN 100 mm deep 8 x
H6-1/1 (up to 1,800 g) Superspike for chickens 12 x
H8-1/1 (up to 1,300 g) Superspike for chickens 12 x
H10-1/1 (up to 950 g) Superspike for chickens 12 x
Other compatible containers: 2/4 GN, 1/1 GN
Technical specifications
Distance between the lowest shelf and the oven cavity opening: 118 mm
Distance between the highest shelf and the oven cavity opening: 148 mm
Max. shelf height: 1.60 m
Max. load capacity: 180 kg
Max. load capacity per shelf: 30 kg
Weight: 46.1 kg
Code 60.22.396
Technical specifications
-
Weight: 46.1 kg
-
Length: 101.3 cm
-
Width: 77.2 cm
-
Height: 174.2 cm
