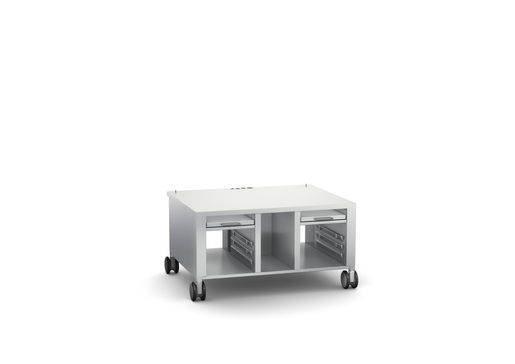

Rational Mobile underframe with swivel casters, model 2-S: The iVario can be installed directly on a suitable underframe. This makes it possible to use the integrated pull-out shelves. Containers can be placed there, and the crucible can be emptied safely. The three molded rails located underneath offer additional storage space for GN containers and accessories. The cutouts for the supply and drain pipe connections allow the underframe to be mounted flush with the wall. Closed side panels and top, open back.
Intended use
This product is intended exclusively for professional use, for example, in restaurant kitchens and in professional and industrial kitchens in hospitals, schools, or butcher shops. Any use other than the intended use is considered non-compliant. RATIONAL AG assumes no liability for consequences resulting from improper use.
Weight: 58.5 kg
Features
Compatibility with other installation variants (adjustable feet, stainless steel feet, swivel casters) as well as with the appliance mounting kit model 2-XS, 2-S.
Material
Stainless steel (CNS 1.4301/AISI 304)
Equipment/Features
2 pull-out shelves
6 pairs of molded rails for 1/1 GN containers
4 swivel casters with a diameter of 125 mm (2 of which have brakes)
Note
Supplementary accessories:
60.74.986 Boiling basket model 2-S
60.75.300 Frying basket model 2-S
60.74.663 Base grid model 2-XS
Standard GN containers
Code 60.31.320
Technical specifications
-
Weight: 58.5 kg
-
Length: 89.9 cm
-
Width: 114.5 cm
-
Height: 59.5 cm
