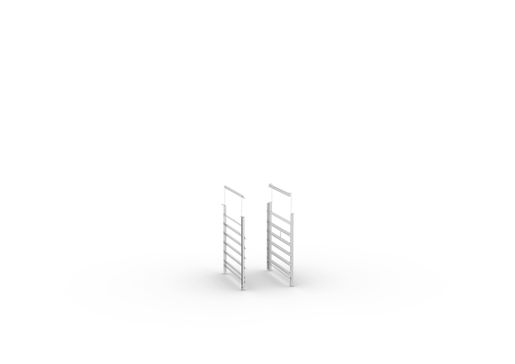

Rational Hanging rack model 6-2/1 - Combi-Duo version, 5+1 shelves: Retractable hanging rack for safe accommodation of GN accessories
With retractable top shelf for a maximum insertion height of 1.60 m
in a Combi-Duo installation.
Intended use
This product is intended exclusively for professional use, e.g. in restaurant kitchens
and in professional and industrial kitchens in hospitals, schools or butchers' shops. Any use
other than the intended use is considered non-compliant. RATIONAL AG assumes no
responsibility for consequences resulting from improper use.
Features
5 + 1 shaped rails with 68 mm rail spacing
Additional rail below the lowest shelf for the grease drip tray
Container end stop on the rear side
Anti-tilt protection when containers are pulled out by U-shaped rails
Capacity
2/1 GN Roasting pan 6 x
pastry
2/1 GN Grill 6 x
2/1 GN 20 mm deep 6 x
2/1 GN 40 mm deep 6 x
2/1 GN 65 mm deep 6 x
2/1 GN 100 mm deep 3 x
H6-1/1 (up to 1,800 g) Chicken Superspike 4 x
H8-1/1 (up to 1,300 g) Chicken Superspike 6 x
H10-1/1 (up to 950 g) Chicken Superspike 4 x
Other compatible containers: 2/4 GN, 1/1 GN
Technical specifications
Distance between the lowest shelf and the oven cavity opening: 61 mm
oven cavity opening:
Distance between the highest shelf and the oven cavity opening: 75 mm
oven cavity opening:
Max. load: 60 kg
Max. load per shelf: 30 kg
Weight: 4.8 kg
Material
Stainless steel (CNS 1.4301/AISI 304)
Code 60.62.188
